OVERVIEW

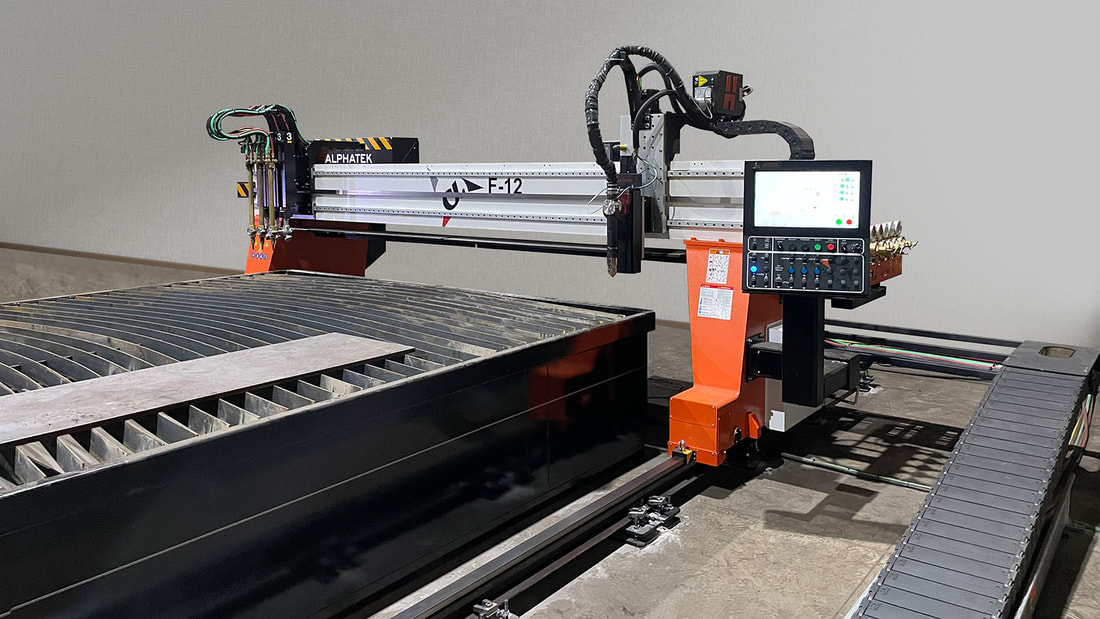

The Alpha Tek F Series Cutting Machine offers the ultimate solution to a wide variety of cutting widths, lengths and maximum cutting station selections. The F Series machine is a heavy-duty gantry style machine. The machine tracks and rack mounting surfaces are machined in a single set-up to provide the best accuracy during assembly and operation.
Standard AC brushless 1500W Alpha Tek Drive System with precision planetary direct drive gearboxes provide outstanding performance and reliable productivity. Guide/Linear ways on cross axis, along with 2.25 inch (58mm) wide fully machined rails deliver smooth motion and highest quality parts.

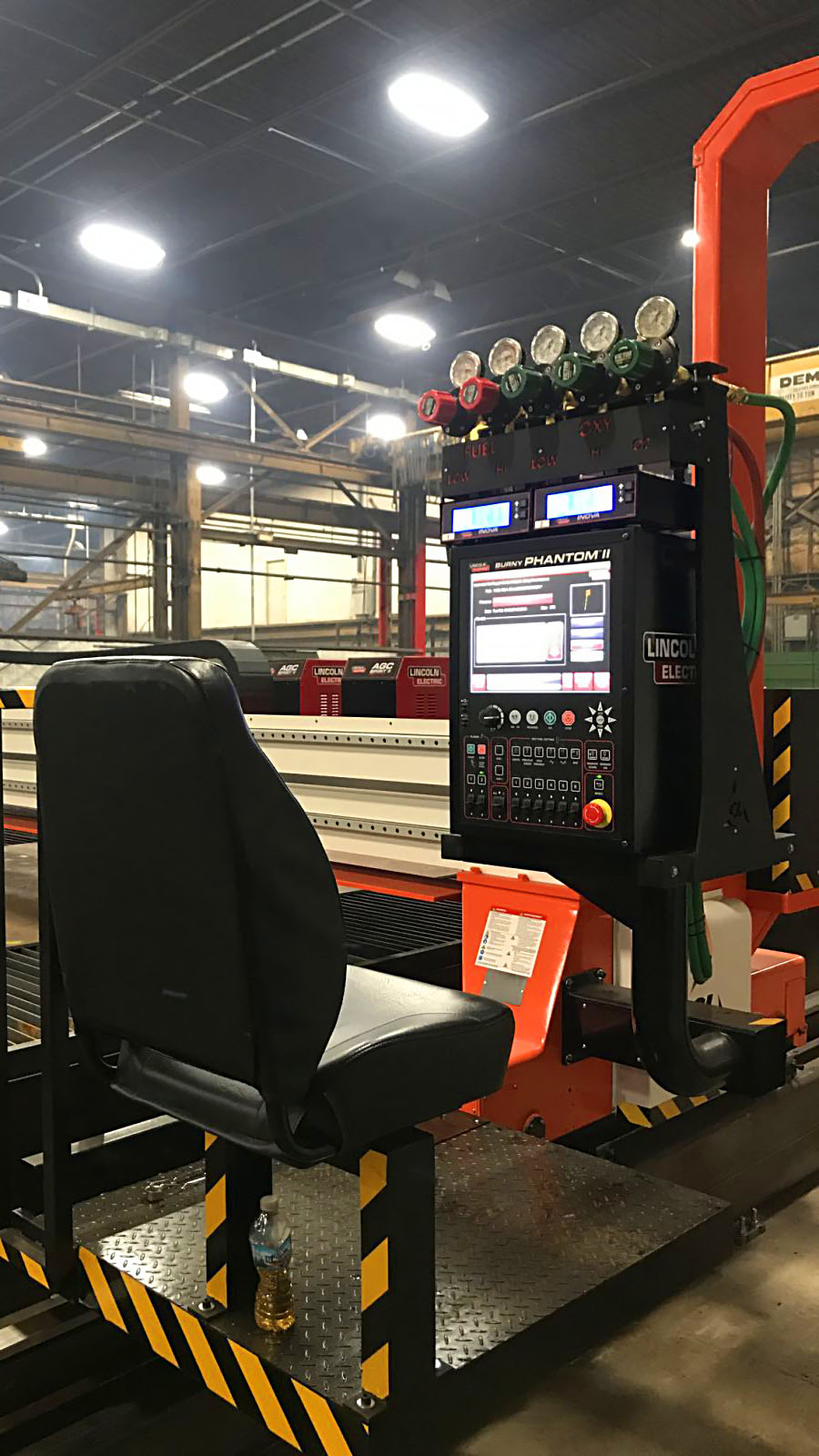

The F Series machine comes equipped with standard operator assistance tools, including operator seat/platform, laser pointer for plate alignment and position location finding, plasma station with crash sensor and Job/Part recovery in the event of Power Loss or Cut Loss. F Series machine operating and plasma cutting system can be configured with Hypertherm “True-Hole” ® or Lincoln Electric Ultra Sharp 2.0® cutting technology. In addition, with the purchase of an F Series machine, Alpha Tek provides free phone and remote assistance support for the life of the machine.
Standard AC brushless 1500W Alpha Tek Drive System with precision planetary direct drive gearboxes provide outstanding performance and reliable productivity. Guide/Linear ways on cross axis, along with 2.25 inch (58mm) wide fully machined rails deliver smooth motion and highest quality parts.
The F Series machine comes equipped with standard operator assistance tools, including operator seat/platform, laser pointer for plate alignment and position location finding, plasma station with crash sensor and Job/Part recovery in the event of Power Loss or Cut Loss. F Series machine operating and plasma cutting system can be configured with Hypertherm “True-Hole” ® or Lincoln Electric Ultra Sharp 2.0® cutting technology. In addition, with the purchase of an F Series machine, Alpha Tek provides free phone and remote assistance support for the life of the machine.

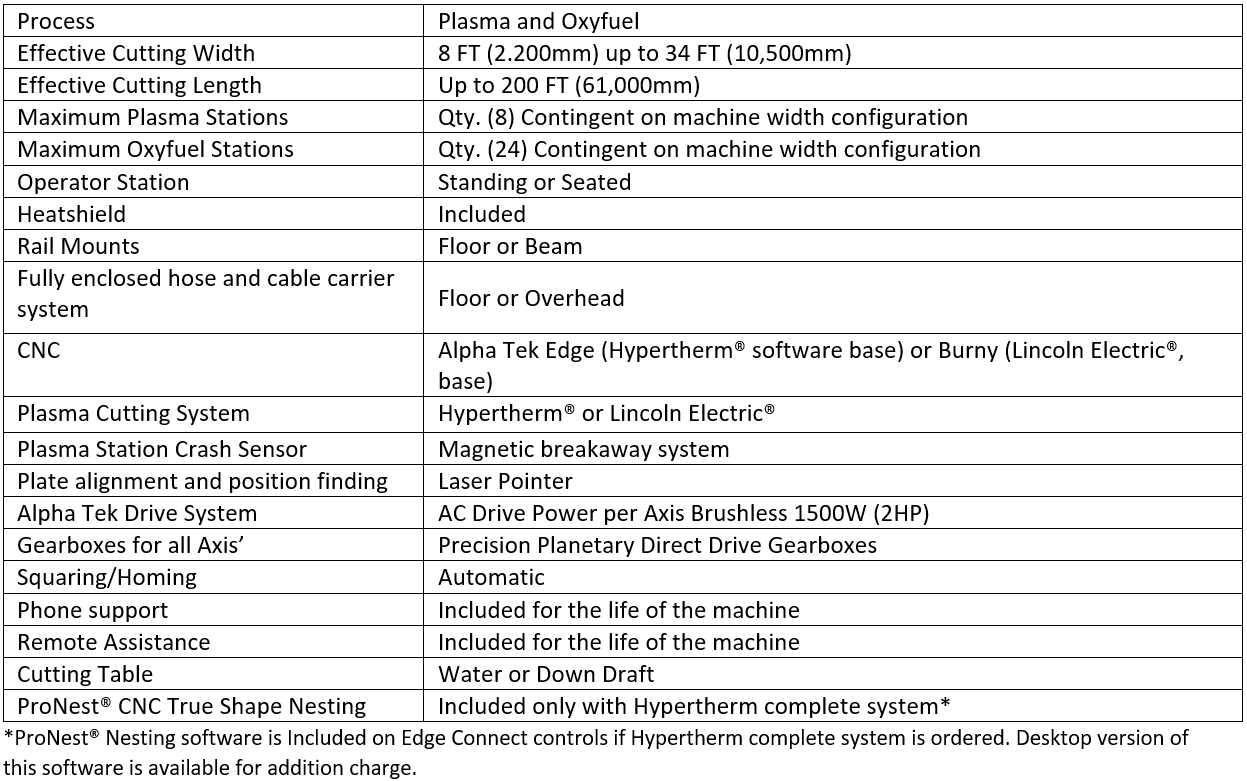

SPECIFICATIONS
|
|
|
|
|
|
